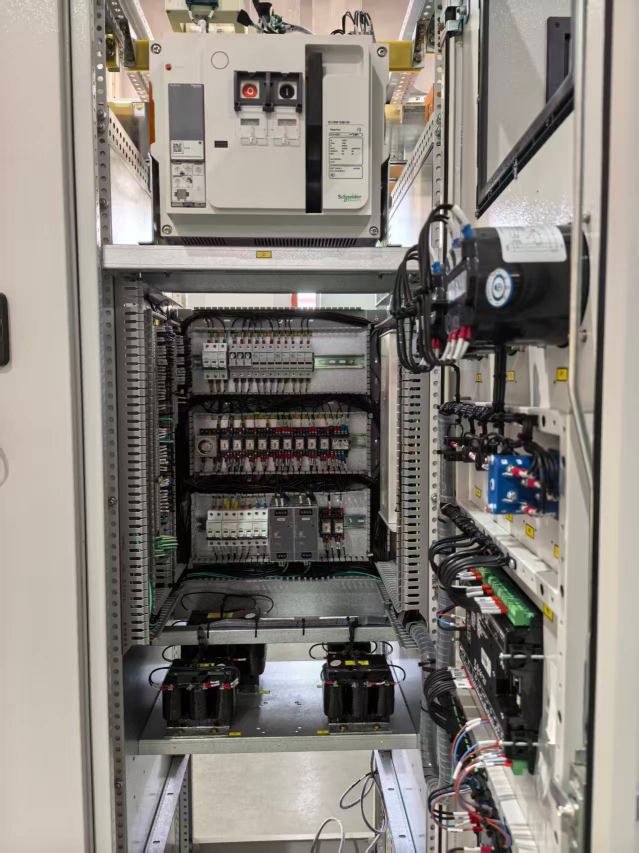

Diesel generator control system

Diesel generator control system is used to control the diesel generator set for output of 600V (or 690V) AC voltage. This system is divided into analog power control system and full-digital power control system.
The analog power control system consists of circuit breaker, synchronizer, AC control assembly, power limiting circuit and ground fault detection circuit.
The full-digital power control system mainly consists of WOODWARDEGCP2 (or SPM-D11, PPM-3) power manager, 2301D diesel engine speed controller, Basler DECS-100 (or DECS-200) voltage regulator and other components.

\

\
